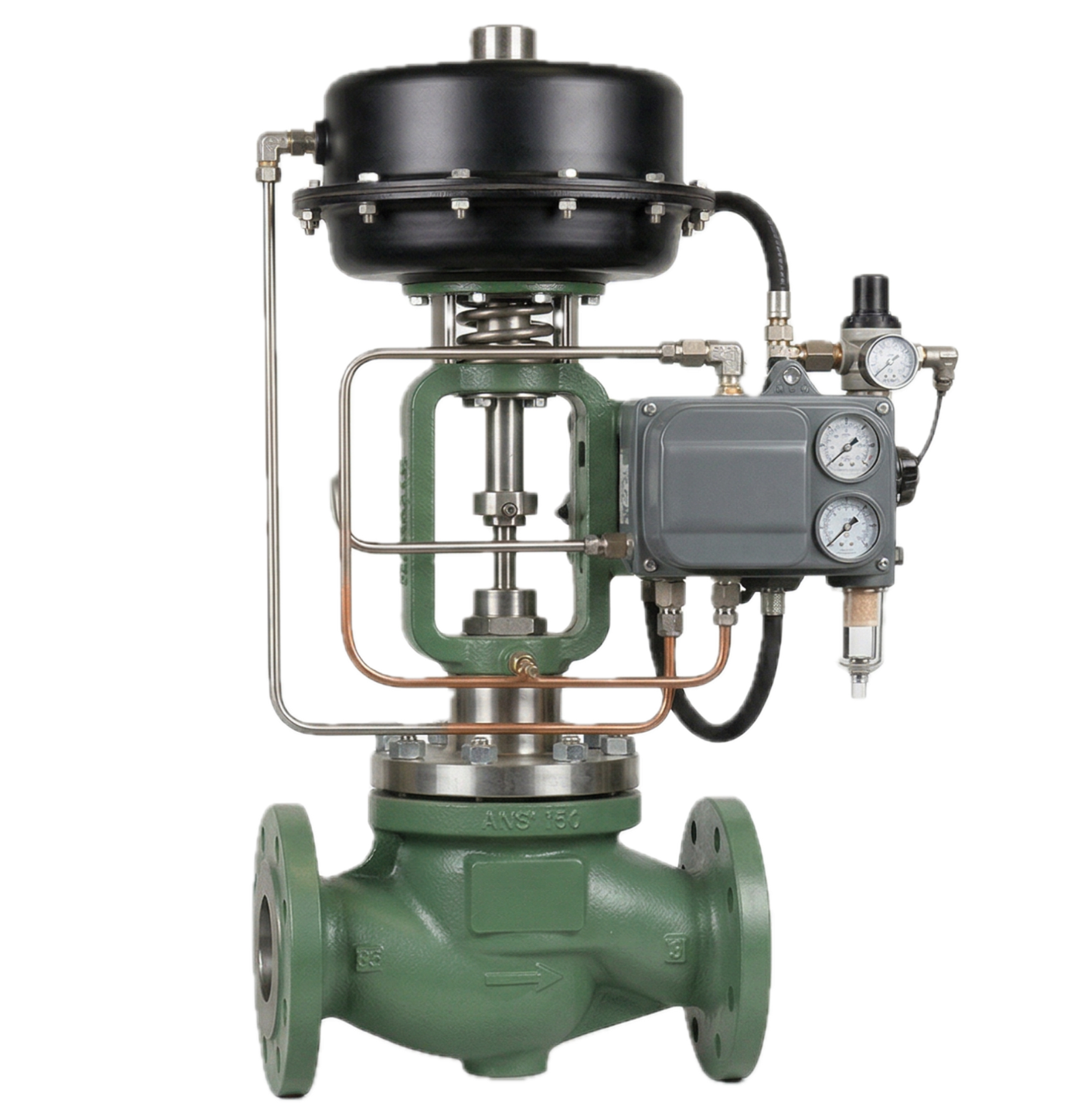

Spanning single-seat, cage-guided, cryogenic, self-operated, and rotary types, this range of control valves is engineered for high precision and low dead-band performance, featuring patented technology that delivers better flow control consistency across demanding conditions including extreme temperatures, high pressure (up to 2500LB), and aggressive or hazardous media. Ideal for applications across oil & gas, petetrochemicals, power generation, pharmaceuticals, food & beverage, water & wastewater, sugar mills, fertilisers, and pulp & paper industries where reliable automated process control is critical.

Size range: DN25 - DN300

Pressure range: PN10, 16, 25, 40, 63, 100, 160, 250, 420; ANSI 150, 300, 600, 900, 1500, 2500

Seal: Metal sealing class IV, V; Soft sealing class VI

Temperature range: -196ºc to 566ºc

Design according: GB/T, JB/T, HG, ASME B16.5, DIN, JIS

End connection type: Flanged (FF, RF, MFM, RJ, TG)

Fire safety: API 607, API 6A, API 6D, BS 6755

Inspection and test: API, ASME, ASTM, MSS, BS, ISO, NACE, EN

Certificates: ISO, API, ANSI, DIN, GB

Place of origin: Jiangsu, China
