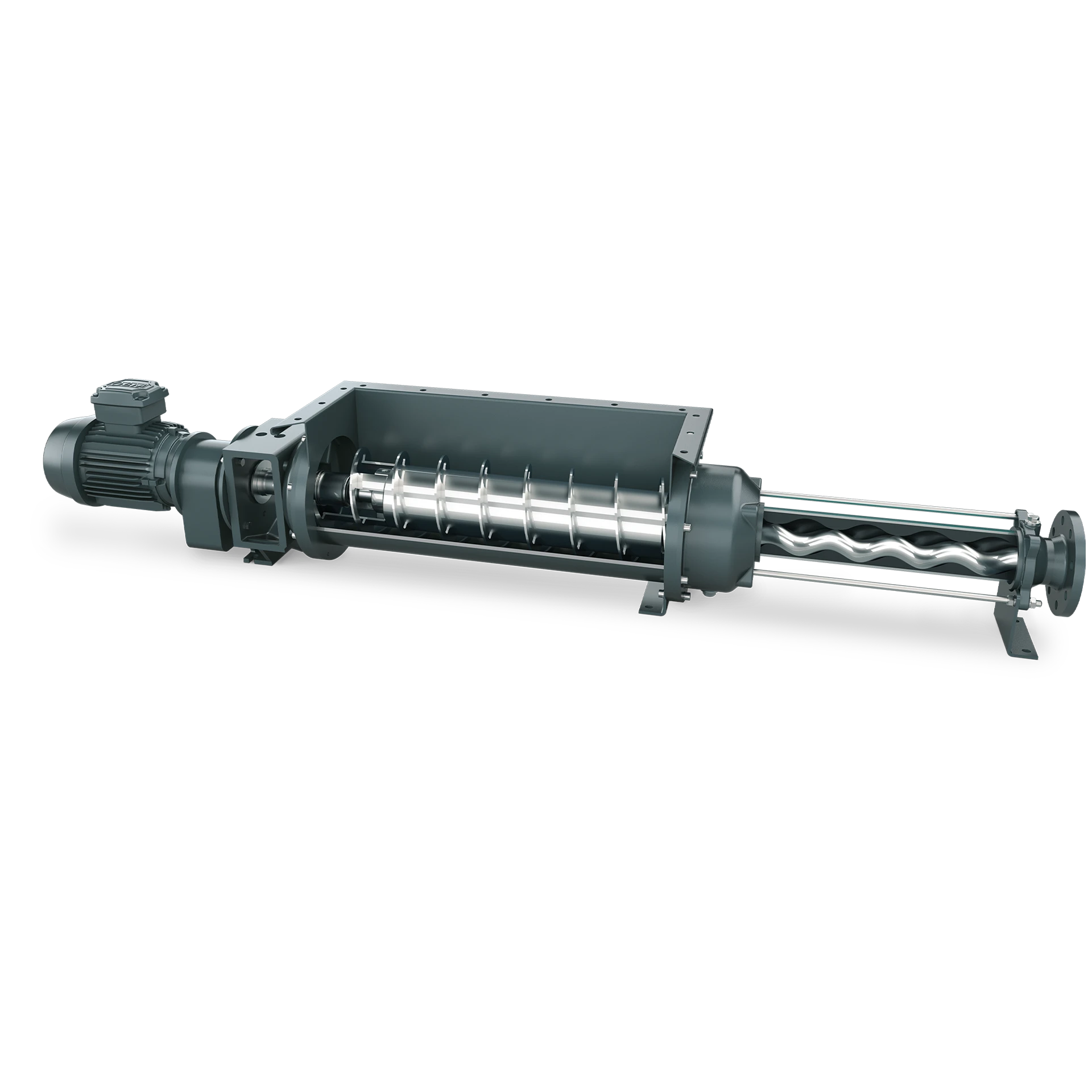

Featuring a single-screw and triple-screw design, the screw pump offers a stable, pulse-free flow with minimal shear. Ideal for high-viscosity, high-solid-content, or shear-sensitive media such as sludge, slurry, and heavy oils. The triple-screw series for asphalt and heavy fuel oil includes an integrated heating chamber supporting operating temperatures up to 350ºc.

Size range:

Pressure range: ≤ 12 Mpa

Flow: ≤ 2000 m³/h

Viscosity range: 1mPas - 1,000,000 mPas

Solids handling: ≤ 30mm

Power: 0.37kW - 110kW

Temperature range: -12ºc - 150ºc

Design according: API 674

End connection type: DIN, ANSI, DN15 - DN25

Fire safety:

Inspection and test:

Certificates: API, CE ISO 9001, ISO 14001, ISO 45001 (OHSAS)

Place of origin: Zhejiang, China
